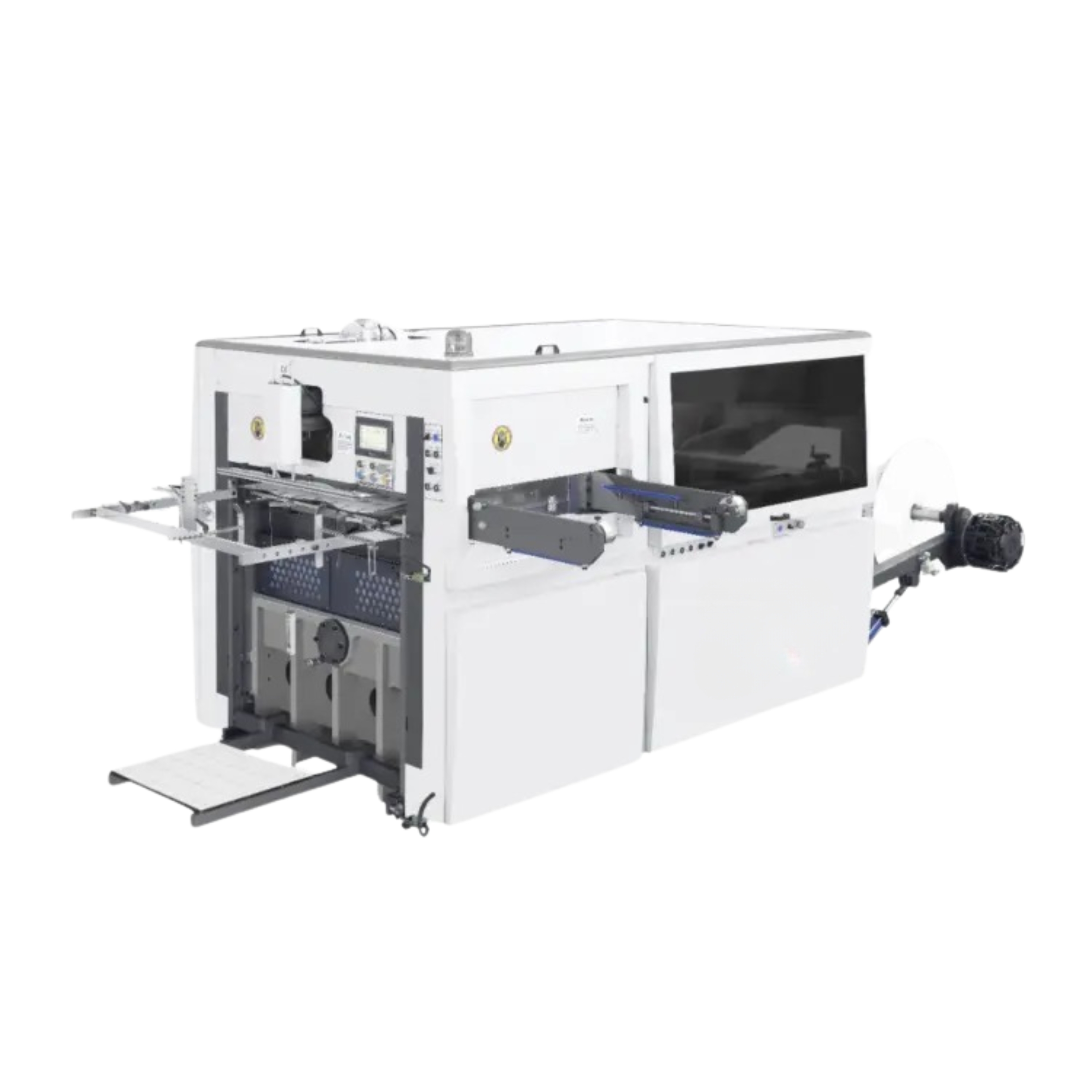

Wooden Roll Die Cutting Machine
Our high-speed automatic die-cutting machine for ordinary and coated paper, widely used in the paper cup, printing, and packaging industries. It features stepper motor–controlled paper feeding with adjustable length via control panel, ensuring accurate and stable die-cutting. The machine supports both plain and printed paper and uses a pneumatic clutch for smooth and reliable operation.
Max Capacity
220 Punches/Min
Paper Materials
Single/Double PE/PLA Coated Paper
Paper Specifications
100-450 GSM
Cutting Precision
±0.25 mm
Complete Technical Specifications
| Specification | Value |
|---|---|
| Max Capacity | 220 Punches/Min |
| Paper Materials | Single/Double PE/PLA Coated Paper |
| Paper Specifications | 100-450 GSM |
| Cutting Precision | ±0.25 mm |
| Maximum Cutting Size | 950x550 mm |
| Thickness Of Coating Film | 0.01-0.11 mm |
| Power Supply | 380V50HZ 3Phase |
| General Power | 21 kw |
| Air Pressure Requirement | 0.5-0.7 MPa |
| Air Pressure Consumption | 0.25m³/min |
| Weight | 7000 kgs |
| Dimensions | 4300 x 2300 x 2350 mm |
Loading form...
Explore the Abundant Features of 'Wooden Roll Die Cutting Machine'!
Unleash your productivity. Elevate your manufacturing experience.
Explore Limitless Possibilities with Die Cutting Machine's Feature Collection
| Feature | Description |
|---|---|
| Precision Cutting for Packaging | Ideal for paper cups, soup bowls, ice cream cups, and other disposable paper containers. |
