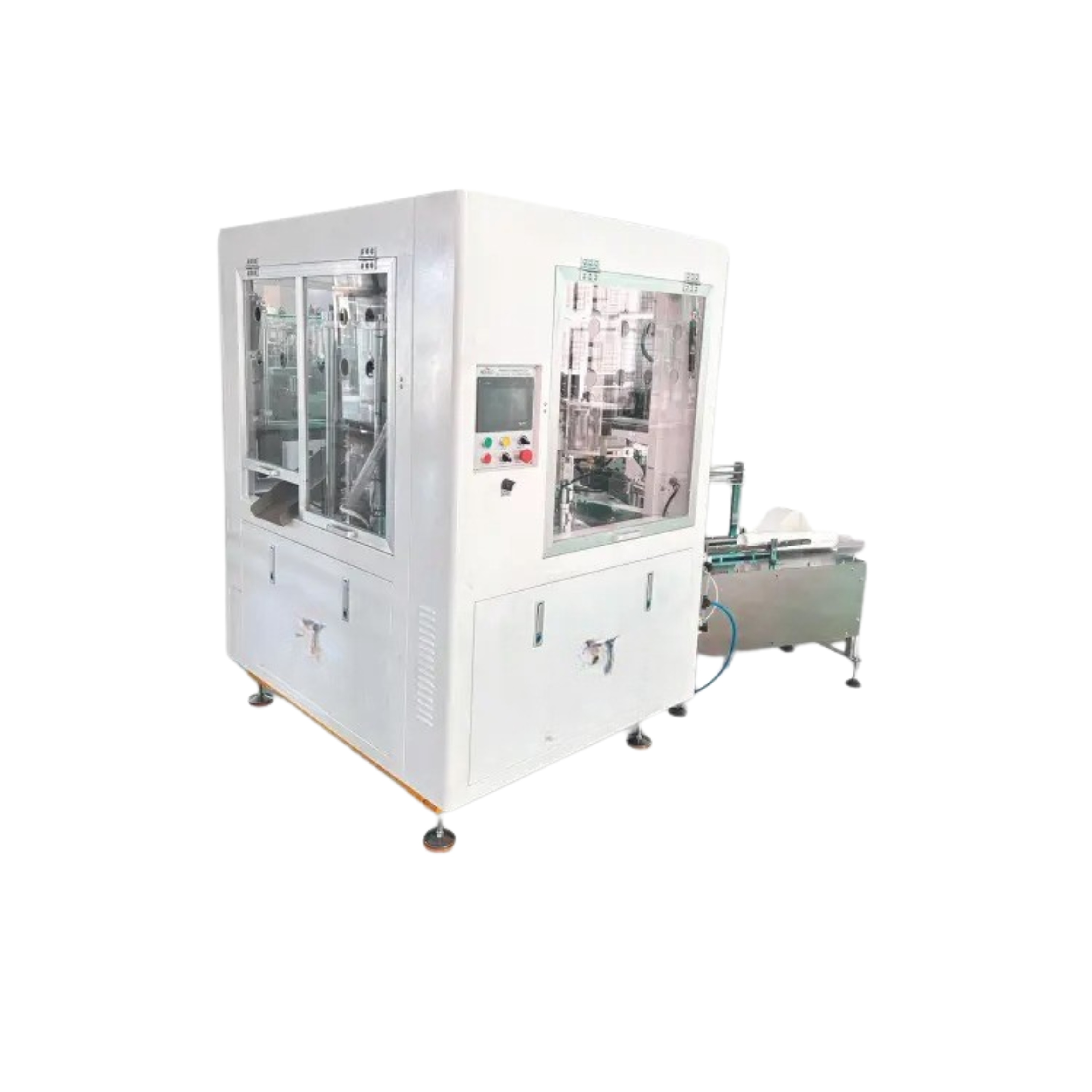

Roll Feeding Single Layer Paper Lid Machine
Our Paper Lid Forming Machine is used to manufacture paper lids for paper cups, paper cans, and round paper containers. It is a fully automatic machine that converts paper rolls into accurately formed flat lids through processes such as feeding, creasing, embossing, straw hole cutting, punching, heating, folding, and knurling, followed by automatic conveying and counting. Built with precision engineering and modern technology, the machine delivers consistent quality and reliable performance.
Max Capacity
80 Pcs/Min
Paper Materials
Single/Double PE Coated Paper, Glossy Coated Paper
Paper Specifications
250-300 GSM
Product Size
N/A
Complete Technical Specifications
| Specification | Value |
|---|---|
| Max Capacity | 80 Pcs/Min |
| Paper Materials | Single/Double PE Coated Paper, Glossy Coated Paper |
| Paper Specifications | 250-300 GSM |
| Product Size | N/A |
| Lid Diameter | 55-100 mm |
| Lid Height | 8-15 mm |
| Cup Bottom Dia (RB) | N/a |
| Power Supply | 380V50HZ 3Phase |
| General Power | 9 kw |
| Compressed Air | 0.6-0.8MPa, 0.5 m3 /min |
| Weight | 4200 kgs |
| Dimensions | 2650X1550X1900 mm |
Explore the Abundant Features of 'Roll Feeding Single Layer Paper Lid Machine'!
Unleash your productivity. Elevate your manufacturing experience.
Explore Limitless Possibilities with Paper Lid Machine's Feature Collection
| Feature | Description |
|---|---|
| 1 | Ideal for Coffee, beverage, and takeaway container producers. |
Applications
Explore our diverse range of industrial applications
Coffee & Tea Shops
Cafes & Coffee Chains
Takeaway & Drive-Thru
Office & Corporate Events
Street Vendors & Food Stalls
