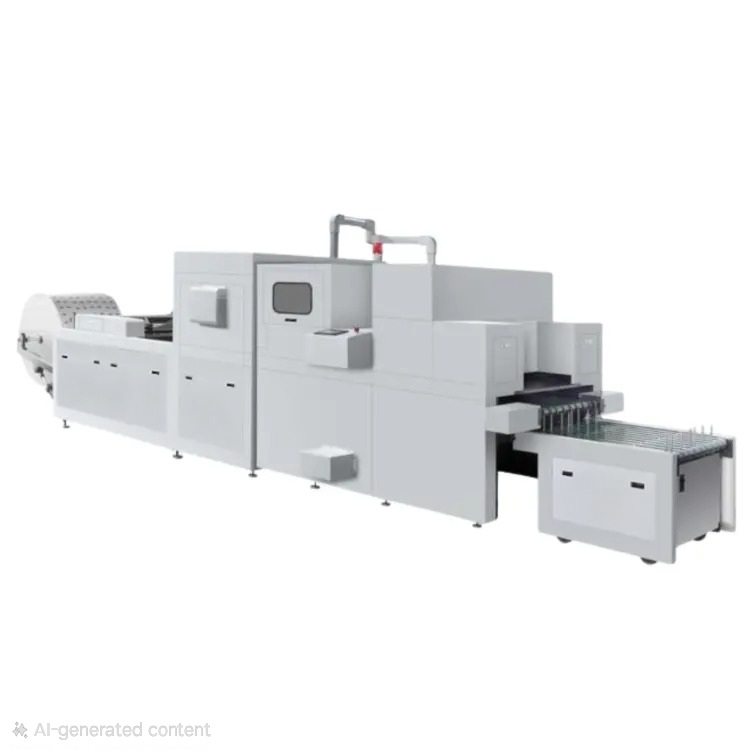

Plastic Lid Thermoforming Machine
This automatic high-speed plastic forming machine is designed for manufacturing a wide range of products such as plastic lids, covers, trays, plates, boxes, and containers in multiple sizes. The machine combines forming, hole punching, and cutting into a single continuous process, significantly reducing manual handling and improving production efficiency. Its energy-efficient heating system lowers power consumption while allowing a compact machine layout, making it suitable for modern production floors. The system offers stable performance, safe operation, and consistent output, and is widely used in the plastic packaging industry.
Max Capacity
40 Times/Min
Raw Materials
PVC, PET, PS
Sheet Thickness
0.15-0.6 mm
Max. Forming Size
480 x 300 mm
Complete Technical Specifications
| Specification | Value |
|---|---|
| Max Capacity | 40 Times/Min |
| Raw Materials | PVC, PET, PS |
| Sheet Thickness | 0.15-0.6 mm |
| Max. Forming Size | 480 x 300 mm |
| Max. Forming Depth | 47 mm |
| Max. Sheet Width | 510 mm |
| Power Supply | 380V50HZ 3Phase |
| General Power | 12 kw |
| Compressed Air | 0.6-0.8MPa, 0.5 m3 /min |
| Weight | 2600 kgs |
| Dimensions | 3500 x 1000 x 1900 mm |
Explore the Abundant Features of 'Plastic Lid Thermoforming Machine'!
Unleash your productivity. Elevate your manufacturing experience.
Explore Limitless Possibilities with Plastic Lid Machine's Feature Collection
| Feature | Description |
|---|---|
| PLC-based control system with touch-screen HMI, encoder, and photo-sensor monitoring | 1 |
| Single-axis drive design for forming, punching, and material feeding to ensure precise synchronization | 2 |
| Food-grade stainless steel construction for clean and environmentally responsible production | 3 |
| Servo-controlled material traction for smooth operation, improved accuracy, and extended forming area | 4 |
| Flexible design supports multiple product shapes and applications | 5 |
Applications
Explore our diverse range of industrial applications
Coffee & Tea Shops
Cafes & Coffee Chains
Takeaway & Drive-Thru
Office & Corporate Events
Street Vendors & Food Stalls
