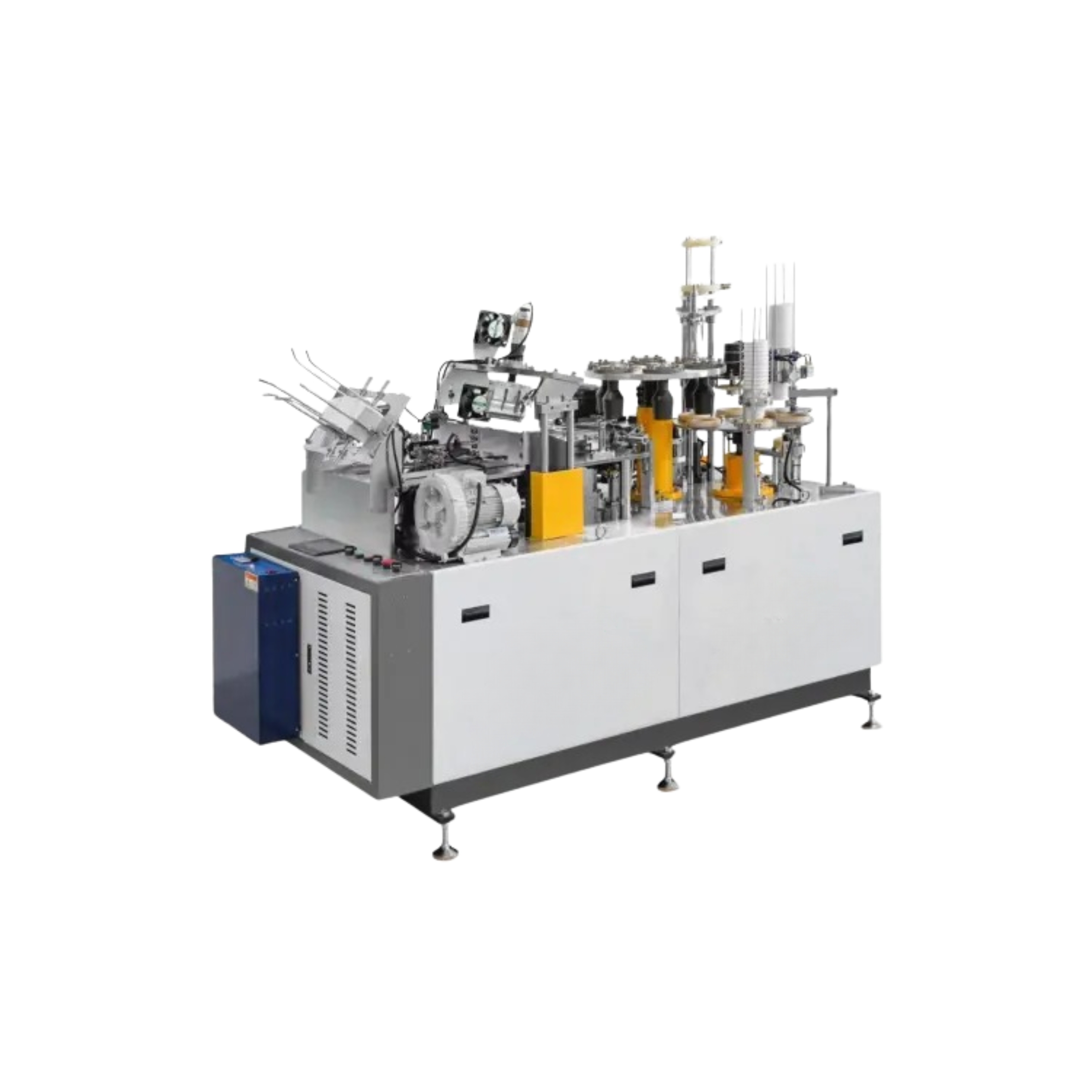

Double Wall / Ripple Wall Paper Cup Forming Machine

Double Wall / Ripple Wall Paper Cup Forming Machine

Our Double Wall Paper Cup Machine is a fully automatic system built with an advanced open cam mechanism and gear transmission technology for smooth, stable, and high-speed performance. An automatic lubrication system reduces friction and ensures long machine life. The machine seamlessly handles sleeve feeding, forming, glue spraying, cup insertion, and sleeve fixing, while photo-electric sensors continuously monitor operations for fault detection and consistent quality.

Max Capacity

90 Pcs/Min

Paper Materials

Single/Double PE Coated Paper

Paper Specifications

180-350 GSM

Product Size

6Oz/180Ml-16Oz/480Ml On Cup 20Oz/600Ml-50Oz/1500Ml On Bowl

Contact Sales

Complete Technical Specifications

SpecificationValue
Max Capacity90 Pcs/Min
Paper MaterialsSingle/Double PE Coated Paper
Paper Specifications180-350 GSM
Product Size6Oz/180Ml-16Oz/480Ml On Cup 20Oz/600Ml-50Oz/1500Ml On Bowl
Cup Top Dia (TD)N/A
Cup Height (H)N/A
Cup Bottom Dia (RB)N/A
Power Supply380V50HZ 3Phase
General Power5 kw
Compressed Air0.6-0.8MPa, 0.5 m3 /min
Weight2500 kgs
Dimensions2200 x 1100 x 1600 mm
Loading form...

Explore the Abundant Features of 'Double Wall / Ripple Wall Paper Cup Forming Machine'!

Unleash your productivity. Elevate your manufacturing experience.

Explore Limitless Possibilities with Double Wall Paper Cup Machine's Feature Collection

FeatureDescription
1Designed to manufacture both double wall and ripple wall paper cups on a single machine, suitable for high-quality two-layer coffee and tea cup production.
