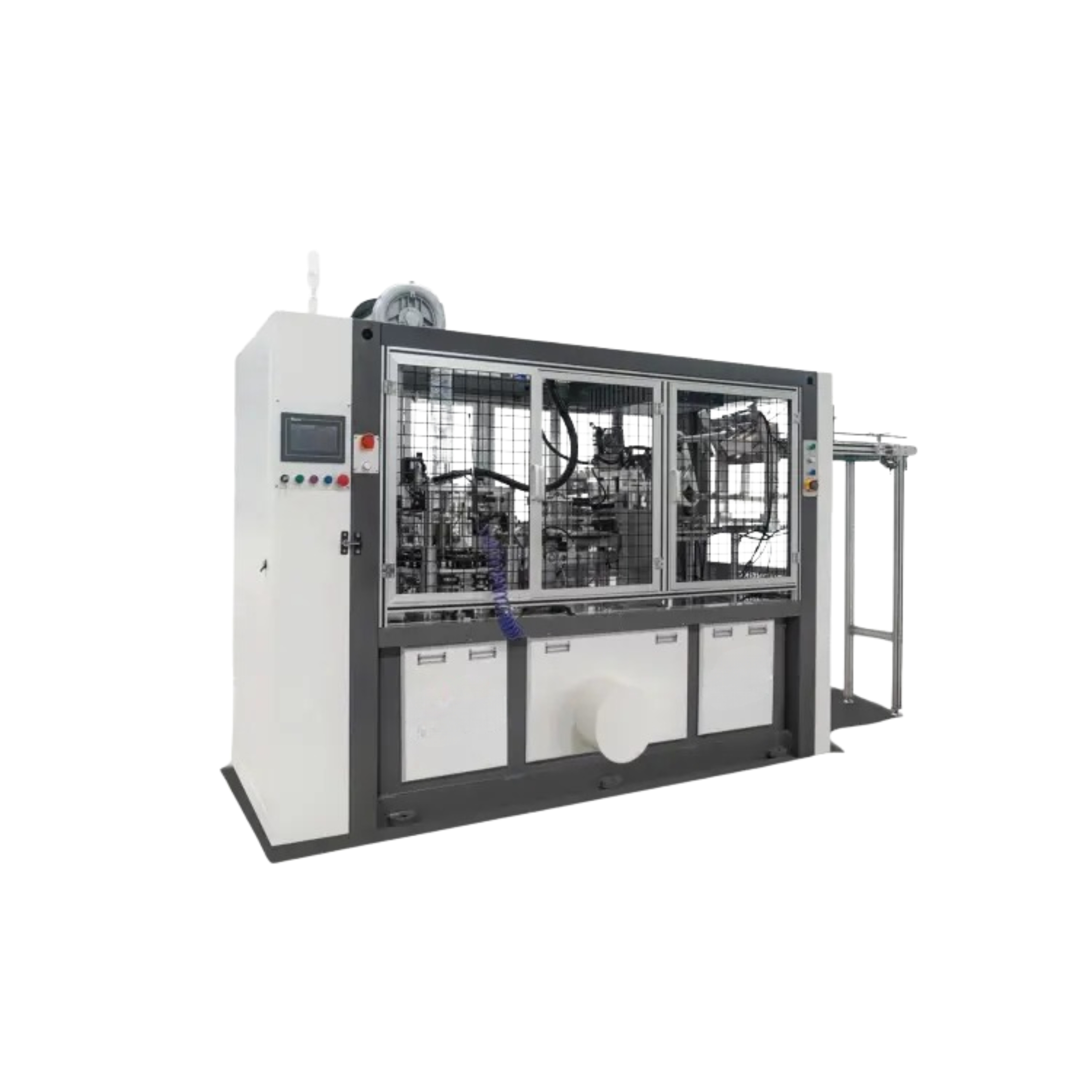

High Speed Double Wall / Ripple Wall Paper Cup Forming Machine
Our Double Wall Paper Cup Machine incorporates an advanced patented open cam drive system that ensures smooth and reliable high-speed operation. The machine delivers an output of up to 160 double wall cups per minute in the 4–16 oz range. Its single-rotation plate design, along with a robust and rigid frame, significantly reduces operational noise and vibration. The system is managed by an intelligent PLC-based control unit, supported by sensor-driven fault monitoring that instantly halts the machine in case of any abnormal condition, ensuring safe and uninterrupted production.
Max Capacity
160 Pcs/Min
Paper Materials
Single/Double PE Coated Paper
Paper Specifications
180-350 GSM
Product Size
6Oz/180Ml-16Oz/480Ml On Cup 20Oz/600Ml-50Oz/1500Ml On Bowl
Complete Technical Specifications
| Specification | Value |
|---|---|
| Max Capacity | 160 Pcs/Min |
| Paper Materials | Single/Double PE Coated Paper |
| Paper Specifications | 180-350 GSM |
| Product Size | 6Oz/180Ml-16Oz/480Ml On Cup 20Oz/600Ml-50Oz/1500Ml On Bowl |
| Cup Top Dia (TD) | 60-95 mm |
| Cup Height (H) | 50-135 mm |
| Cup Bottom Dia (RB) | 40-75 mm |
| Power Supply | 380V50HZ 3Phase |
| General Power | 7 kw |
| Compressed Air | 0.6-0.8MPa, 0.5 m3 /min |
| Weight | 3600 kgs |
| Dimensions | 2700 x 1000 x 2000 mm |
Explore the Abundant Features of 'High Speed Double Wall / Ripple Wall Paper Cup Forming Machine'!
Unleash your productivity. Elevate your manufacturing experience.
Explore Limitless Possibilities with Double Wall Paper Cup Machine's Feature Collection
| Feature | Description |
|---|---|
| 1 | Designed to manufacture both double wall and ripple wall paper cups on a single machine, suitable for high-quality two-layer coffee and tea cup production. |

Applications
Explore our diverse range of industrial applications

Coffee & Tea Shops

Cafes & Coffee Chains

Takeaway & Drive-Thru

Office & Corporate Events

Street Vendors & Food Stalls
