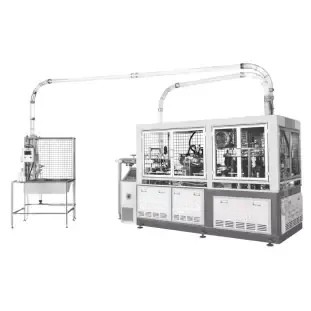

Fully Automatic Servo Paper Cup Forming Machine
Our Full Servo Paper Cup Making Machine is a next-generation solution engineered for high-speed, high-precision, and fully synchronized cup production. Powered by 13 independent servo motors, every station operates with exact control, delivering superior accuracy, smooth motion, and unmatched production stability. With an output capacity of up to 180 cups per minute, this machine sets a new benchmark in paper cup manufacturing technology.
Max Capacity
180 Pcs/Min
Paper Materials
Single/Double PE/PLA Coated Paper
Paper Specifications
150-380 GSM
Product Size
4Oz/120Ml-16Oz/480Ml
Complete Technical Specifications
| Specification | Value |
|---|---|
| Max Capacity | 180 Pcs/Min |
| Paper Materials | Single/Double PE/PLA Coated Paper |
| Paper Specifications | 150-380 GSM |
| Product Size | 4Oz/120Ml-16Oz/480Ml |
| Cup Top Dia (TD) | 60 - 95 mm |
| Cup Height (H) | 50-135 mm |
| Cup Bottom Dia (RB) | 40-75 mm |
| Power Supply | 380V50HZ 3Phase |
| General Power | 35 kw |
| Compressed Air | 0.6-0.8MPa, 0.5 m3 /min |
| Weight | 3600 kgs |
| Dimensions | 3700 x 1520 x 1940 mm |
Explore the Abundant Features of 'Fully Automatic Servo Paper Cup Forming Machine'!
Unleash your productivity. Elevate your manufacturing experience.
Explore Limitless Possibilities with Paper Cup Machine's Feature Collection
| Feature | Description |
|---|---|
| Servo Motor Technology | Each production station is individually controlled, ensuring perfectly synchronized and highly accurate operation. |
| High-Speed Production | Delivers up to 180 cups per minute, significantly boosting output and profitability. |
| Superior Accuracy & Stability | Full servo drive eliminates mechanical errors, resulting in smoother operation and consistent cup quality. |
| Advanced Motion Control | Every forming, sealing, and shaping process is digitally controlled for precise cup formation. |
| Next-Generation Technology | Replaces traditional mechanical systems with intelligent servo automation for higher efficiency and lower wear. |
Applications
Explore our diverse range of industrial applications
Coffee & Tea Shops
Cafes & Coffee Chains
Takeaway & Drive-Thru
Office & Corporate Events
Street Vendors & Food Stalls
