High Speed Paper Cup Forming Machine

High Speed Paper Cup Forming Machine

Our Paper Cup Making Machine is a fully automatic industrial system designed to manufacture high-quality disposable paper cups used for serving hot and cold beverages. With the growing demand for eco-friendly and hygienic packaging, paper cups have become a preferred choice for tea, coffee, and soft drinks services across the world.

Max Capacity

120 Pcs/Min

Paper Materials

Single/Double PE/PLA Coated Paper

Paper Specifications

150-350 GSM

Product Size

4Oz/120Ml - 16Oz/480Ml

Contact Sales

Complete Technical Specifications

SpecificationValue
Max Capacity120 Pcs/Min
Paper MaterialsSingle/Double PE/PLA Coated Paper
Paper Specifications150-350 GSM
Product Size4Oz/120Ml - 16Oz/480Ml
Cup Top Dia (TD)45 - 100 mm
Cup Height (H)30 - 115 mm
Cup Bottom Dia (RB)35 - 75 mm
Power Supply380V50HZ 3Phase
General Power15 kw
Compressed Air0.6-0.8MPa, 0.5 m3 /min
Weight2500 kgs
Dimensions2350 x 1350 x 2000 mm
Loading form...

Explore the Abundant Features of 'High Speed Paper Cup Forming Machine'!

Unleash your productivity. Elevate your manufacturing experience.

Explore Limitless Possibilities with Paper Cup Machine's Feature Collection

FeatureDescription
Intelligent Operating SystemPLC based touch-screen control allows real-time monitoring, fault alerts and smooth production management.
High Output with Maximum ReliabilityRuns on a 10-mould configuration for stable, continuous production with an industry-leading over 99% accepted cup rate.
Low Manpower, High EfficiencyOne trained operator can easily manage multiple machines simultaneously, reducing labour cost.
Wide ApplicationSupports single & double PE coated paper for manufacturing hot and cold drink paper cups.

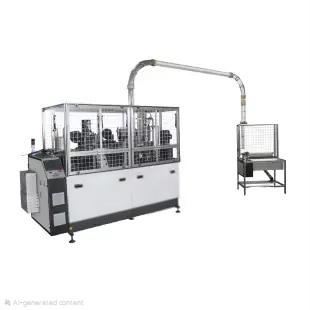

High Speed Paper Cup Forming Machine - Image 1

Applications

Explore our diverse range of industrial applications

Coffee & Tea Shops

Coffee & Tea Shops

01
Cafes & Coffee Chains

Cafes & Coffee Chains

02
Takeaway & Drive-Thru

Takeaway & Drive-Thru

03
Office & Corporate Events

Office & Corporate Events

04
